Product Introduction
Model: DMB‑6100E
Main Features
Equipped with 1 Gigabit Ethernet interface for receiving IPTV SPTS/MPTS transport streams, capable of converting up to 32, 48 or 64 channels into standard NTSC or PAL modulated analog TV signals.
Supports various analog television systems including NTSC and PAL B/G/D/I. Each device operates under one single standard; kindly specify the required standard at the time of ordering.
Capable of decapsulating transport streams for HEVC/H.265, H.264/AVC and MPEG‑2 video coding formats.
Accepts up to 32, 48 or 64 IP input signals in UDP/RTP protocol with MPTS/SPTS formats.
Overview

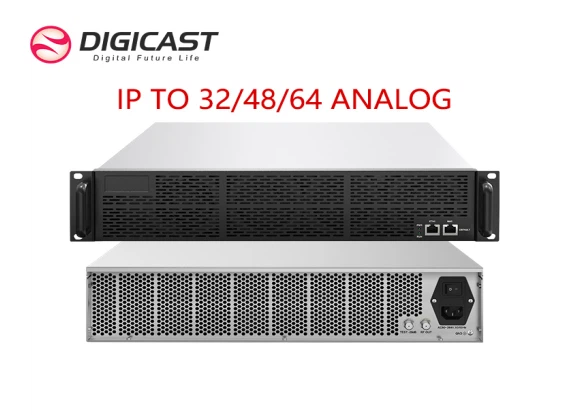

DMB-6100E Analog NTSC/PAL Modulator with IPTV Input is a gateway device that converts digital IPTV streams into 32, 48, or 64 analog modulated channels. It includes a 1 Gigabit Ethernet port for receiving SMPTS/MPTS IPTV transport streams, transforming up to 32/48/64 programs into standard NTSC or PAL B/G/D/I modulated analog outputs. The unit supports transport‑stream decapsulation for H.265 HEVC, H.264, and MPEG‑2 video formats, integrating the functions of an IPTV decoder/demodulator and an analog modulator in a single chassis.
Features:
High-Density Design Supporting Up to 64 Analog RF Outputs – The system processes up to 32 IP multicast groups received via a Gigabit Ethernet MPEG transport stream and converts them into up to 32 standard PAL or NTSC analog RF channels.
Multi-Format Transport Stream Decapsulation – Supports H.265 HEVC, H.264, and MPEG-2 transport stream decapsulation.
On-Screen Display and Captioning – Enables logo and caption overlay (OSD), as well as closed captioning, subtitles, and teletext insertion.
BISS Decryption Capability – Optional BISS (Basic Interoperable Scrambling System) decryption functionality.
Hot Tags: ip analog channel modulator, China ip analog channel modulator manufacturers, suppliers, factory, Agile Modulator, analog modulator, HDMI To RF Analog TV Transmitter, IP To Analog Modulator
Specifications
IP Stream Input
Interface/rate: 1x RJ45, Max 840Mbps for each GE input
Stream：UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
Transport Protocol: UDP/RTP, unicast and multicast, IGMP V2/V3
TS Decoding Parameters
Video Resolutions: Up to 1080P
Video Form MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1
Audio Form MPEG-1 Layer I/II/III; WMA, AAC,AC3
MAX decoding stream: 32 channels
Additional capabilities: Teletext; BISS decrypt option function
Aspect Ratio Control: 4:3(Letter & Box); 16:9
RF Modulation Parameters
Connector: F female connector
Number of RF channels: Max 32,Fully agile modulated channels
Supported Standard: NTSC, PAL BG/DI/DK option
Support:STD,HRC and IRC
Output Frequency:48 ~ 860 MHz
Out-band Rejection≥ 60dB
Flatness:-2dB per carrierIP INPUT :
Interface/rate: 2x RJ45, Max 840Mbps for each GE input
Stream：UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
Transport Protocol: UDP/RTP, unicast and multicast, IGMP V2/V3
Return Loss :12 dB (min)
Differential Gain: ≤ 5%
Group Delay Response:≤ 100nS
2K Factor:≤ 2%
Output Level:≥ 53dBmV combined*
Adjust Range:20dB Per 32CHs
10dB Per CH
Audio Output Format:MONO
Audio Level Adjust Range:0 ~ 100 %
RF Test Point:-20 dB Relative to output
Control and Monitoring
Configuration Interface: Web-based
Remote: Upgrade via network
Connector: RJ45,100M/1000M Ethernet interface
Physical and Power
Management: NMS
Language: English
Power Supply: AC 90 ~ 264 V
Consumption:<240 W
Weight: 8.5 KG
Dimension: 484*435*89 (MM)
