Your Professional DVB To IP Gateway Supplier

Our goal is to become your true partner in the field of 4k encoder China. DIGICAST focus on developing,manufacturing and sales for the products in digital TV/IPTV/OTT headend,video live application. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.

encoder for youtube live streaming
DMB-90E series support demodulation FTA/Encrypted Tuners signals and transfer by internet for IPTV application.. It is not only DVB to IP gateway,also support HDMI input with H264/H265 HEVC encoding
read more
HD Satellite Receiver For Streaming
DMB-90E Series 4/8/12/16/20/24 Channels professional Receiver, 4 Tuners ports per module, Up to 6 Modules in Back panel. It is integrated with tuner demodulation, which can demodulate from
read more
Digital Professional Receiver
DMB-90E Series 4/8/12/16/20/24 Channels professional Receiver, 4 Tuners ports per module, Up to 6 Modules in Back panel. It is integrated with tuner demodulation, which can demodulate from
read more
Digital TV Professional Receiver
Title:HDMI Encoder Modulator. Model:DMB-9581E. Highlight. DMB-9581E series multi-channel H.264 HD Encoding & Modulator (all-in-one) is a high-density and flexible device, integrating encoding
read more
Multi Channels IP Gateway
ApplicationIPTV/OTT Headend equipment Advertising, monitoring, training and educatingInsert all your digital TV RF programs source to IPTV Project Enterprise, hotel, campus, hospital, restaurant,
read more
Cam Ip Receiver
ApplicationIPTV/OTT Headend equipment Advertising, monitoring, training and educatingInsert all your digital TV RF programs source to IPTV Project Enterprise, hotel, campus, hospital, restaurant,
read more
Encrypting Rf To Ip Receiver
ApplicationIPTV/OTT Headend equipment Advertising, monitoring, training and educatingInsert all your digital TV RF programs source to IPTV Project Enterprise, hotel, campus, hospital, restaurant,
read more
DVB-SS2 To IP With CI Card
ApplicationIPTV/OTT Headend equipment Advertising, monitoring, training and educatingInsert all your digital TV RF programs source to IPTV Project Enterprise, hotel, campus, hospital, restaurant,
read more
High Cost Effective 8 Channel Receiver
Input: 4/8 FTA Tuners inputDifferent Tuner standard option from DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T,ATSC without different tuner standard mixed input function DVB-T/T2,DVB-C,ISDB-T,ATSC is
read more
4 8 Channel Professional Receiver
Input: 4/8 FTA Tuners inputDifferent Tuner standard option from DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T,ATSC without different tuner standard mixed input function DVB-T/T2,DVB-C,ISDB-T,ATSC is
read more
24 Dvb-tt2 To IP Receiver
DIGICAST FTA Multi-Channels DVB-SS2 to IP Professional Receiver . Model #: DMB-90E. Highlight. 1: Multi-Channel Input Option: 4/8/12/16/20/24 Tuner Input. 2: IP output support 4*MPTS +512*
read more
20 Channel Video Professional Receiver
DIGICAST FTA Multi-Channels DVB-SS2 to IP Professional Receiver . Model #: DMB-90E. Highlight. 1: Multi-Channel Input Option: 4/8/12/16/20/24 Tuner Input. 2: IP output support 4*MPTS +512*
read more

First 12 3 Last

Why Choose Us

Our services:

In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.

Our certifications

We are ISO9001 certified and have passed international certifications.

Product market

Our products are highly sought after by customers worldwide, primarily in North America and Southern Europe.

Quality control

All products undergo a 100% comprehensive test of every function and a 24/7 professional burn-in test by our quality control department before delivery to ensure stable operation 24/7/365.

Advantages of DVB To IP Gateway

Flexible integration: Combines traditional dvb infrastructure with modern ip networks, reducing dependency on coaxial cables or satellite dishes.

Scalability: Enables the easy addition of new channels or services without extensive hardware changes.

Cost-efficiency: Reduces costs by leveraging existing ip infrastructure.

High-quality transmission: Supports HD and 4k video content with minimal latency.

Content customization: Allows for targeted content delivery, including regional or audience-specific programming.

Remote accessibility: Content can be streamed to devices anywhere with an internet connection.

Future-proofing: Supports migration to all-ip systems, ensuring compatibility with emerging technologies like ott (over-the-top) services.

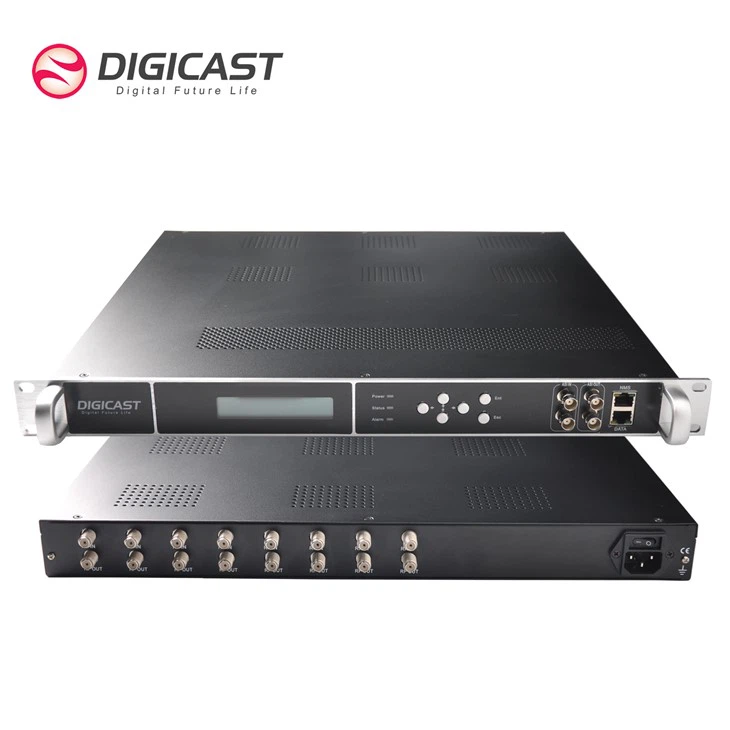

Specification of DVB To IP Gateway

Product name	DVB to IP gateway
Local interface	LCD + control buttons
Configuration interface	Web-based
Remote upgrade	Via network
Connector	RJ45, 100M/1000M Ethernet interface
Voltage	100 to 120/200 to 240V AC ±10%; 50/60Hz
Consumption	60W
Operating temperature	0~50°C
Storage temperature	-20 ~ 80℃
Dimensions	483mm(W)380mm(D)44.5mm(H)
Weight	9.3 kg/pc

Features of DVB To IP Gateway

Different input version

Up to 6 modules(12 encrypted tuners) input, each module 2*tuner input +2*ci slots, 4/8 tuners input option. Max 12 channels input whatever which types input, pls consult with sales according your application.

Different tuner standard option

Dvb-s/s2/s2x, dvb-t/t2, dvb-c, dtmb, isdb-t/tb, atsc-t.

Easy to setup and monitor

Operation via lcd screen and web management.

Multiple features

Two separate asi input for external ts multiplexing.

Powerful gige data port

Ip stream output: 3 gigabit ip input/output (data1:Ip output over rtmp/http/rtsp/hls/srt protocol ;data2: Ip output over udp/rtp protocol; data3: 128 ip address inputs.

Applicable Scenarios of DVB To IP Gateway

Iptv (internet protocol television)

Enables streaming live TV and on-demand content over the internet.

Content distribution networks (cdns)

Distributes TV and multimedia content efficiently over vast geographic areas.

Corporate networks

Internal media distribution for announcements, training, or live events.

Hospitality and healthcare

Provides entertainment services to guests or patients.

Remote education

Streams educational channels or multimedia to remote locations.

Transport and mobility

Offers live TV or multimedia content on planes, trains, and buses.

Components of DVB To IP Gateway

DVB-T/T2 receiver: The solution features a high-performance DVB-T/T2 receiver that captures UHF/VHF terrestrial TV signals. It ensures reliable reception and supports both DVB-T and DVB-T2 standards to provide a wide range of channels and high-definition content.

IP gateway: IP gateway transforms the received DVB-T/T2 signals into IP format, allowing seamless integration with the existing IPTV infrastructure. It converts the TV signals into IP streams that can be easily distributed through the IPTV server to guest rooms.

IPTV server: The solution incorporates a robust and scalable IPTV server that manages the delivery of TV channels and interactive services to guest rooms. It provides features like channel management, content scheduling, EPG support, and VOD integration, ensuring a seamless and customized viewing experience for guests.

Set-top boxes: Our solution includes set-top boxes (STBs) that are compatible with the IPTV system. These STBs are installed in guest rooms, enabling guests to access TV channels and interactive features through a user-friendly interface.

User interface and interactive features: The DVB-T/T2 to IP gateway solution offers a user-friendly interface that allows guests to navigate through TV channels, access EPGs, and enjoy interactive features.

Packing and Shipping of DVB To IP Gateway

Packing	Wooden box
Shipping	Shipped by road, sea, rail

FAQ

Q: What is DVB-native IP?

A: DVB Native IP facilitates the integration of OTT and Broadcast technologies into an efficient and contemporary IP media distribution solution. The Native IP specification addresses both consumer and professional applications.

Q: What is an IPTV gateway?

A: IPTV gateway is a device used to facilitate the delivery of IPTV services from a service provider to their customers.

Q: What is the gateway on your TV?

A: A TV gateway (also called network TV tuner) is a television headend to a network UPnP router that receives live digital video broadcast (DVB) MPEG transport streams (channels) from terrestrial aerials, satellite dishes, or cable feeds and converts them into IP streams for distribution over an IP network.

Q: What is an example of a gateway IP address?

A: A common example of a gateway IP address is 192.168.1.1. This address is frequently used as the default gateway for home networks, acting as the router's address within the local network.

Q: How to set gateway IP address?

A: To set a default gateway IP address, you typically need to access your network settings, either through your operating system's graphical interface or the command line, and then modify the relevant settings.

Q: What should my IP gateway be?

A: Is the default gateway the address of your router? Typically, yes, your default gateway is your router's IP address.

As one of the most professional dvb to ip gateway manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale high-grade dvb to ip gateway from our factory.
