Product Introduction

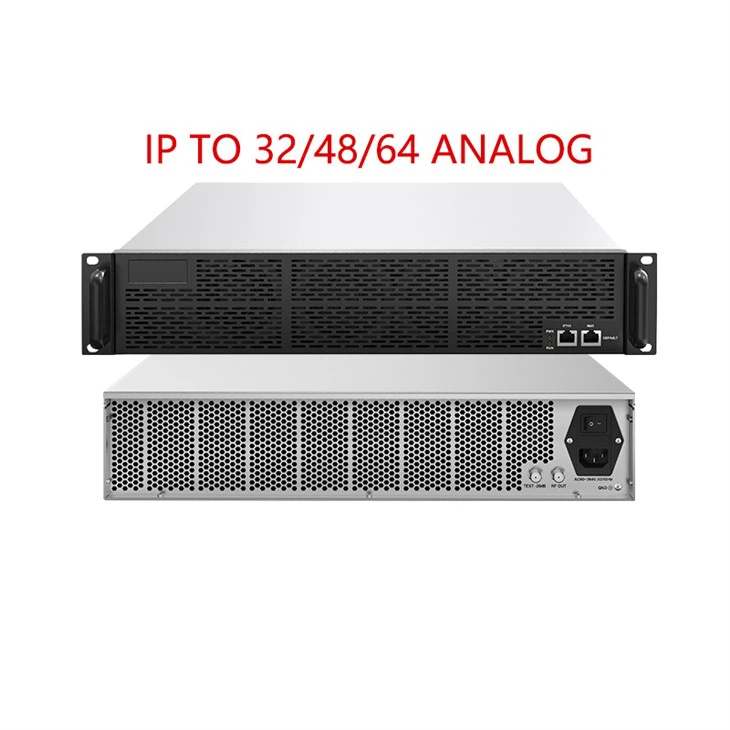

Title:IP to 32 48 64 Analog RF Modulator
Model:DMB-6100E
Highlight
1: 1 GigE Ethernet ports for content IPTV SMPTS/MPTS TS's input that will convert up to 32/48/64 programs to standard NTSC or PAL modulated channels.
2: Multi-system NTSC, PAL BG/DI/D option,one device one standard, confirm the standard you need when order
3: HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
4: max 32/48/64 IP input over UDP/RTP MPTS/SPTS input
Overview
DMB-6100E is an Analog NSTC /PAL analog modulator with IPTV input, works as s Digital IPTV streams to 32/48/64 analog channel modulator - gateway, it has 1 1000M Ethernet ports for content IPTV SMPTS / MPTS TS's input that will convert up to 32/48/64 programs to standard NTSC, PAL BG/DI/D modulated channels. It supports H.265 HEVC, H.264, and MPEG2 transport stream decapsulation. It works as an IPTV decoder demodulator integrated with an analog modulator.
Features:
High Density design max to 64 analog RF out --- processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC
Multi Decoding decapsulation for TS streaming---H.265 HEVC, H.264, and MPEG2 transport stream decapsulation.
Add LOGO/Caption to the program--OSD (Logo and Caption) insertion, CC/Subtitle/Teletext
BISS Decryption-- BISS decryption as an option
Hot Tags: ip to analog modulator, China ip to analog modulator manufacturers, suppliers, factory, rf modulator, HD Live Streaming Encoder, 4k encoder, Edfa Fiber Amplifier, DVB SS2X RF To IP Converter, Modulator HDMI
Specifications
IP Stream Input
Interface/rate: 1x RJ45, Max 840Mbps for each GE input
Stream：UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
Transport Protocol: UDP/RTP, unicast and multicast, IGMP V2/V3
TS Decoding Parameters
Video Resolutions: Up to 1080P
Video Form MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1
Audio Form MPEG-1 Layer I/II/III; WMA, AAC,AC3
MAX decoding stream: 32 channels
Additional capabilities: Teletext; BISS decrypt option function
Aspect Ratio Control: 4:3(Letter & Box); 16:9
RF Modulation Parameters
Connector: F female connector
Number of RF channels: Max 32,Fully agile modulated channels
Supported Standard: NTSC, PAL BG/DI/DK option
Support:STD,HRC and IRC
Output Frequency:48 ~ 860 MHz
Out-band Rejection≥ 60dB
Flatness:-2dB per carrierIP INPUT :
Interface/rate: 2x RJ45, Max 840Mbps for each GE input
Stream：UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
Transport Protocol: UDP/RTP, unicast and multicast, IGMP V2/V3
Return Loss :12 dB (min)
Differential Gain: ≤ 5%
Group Delay Response:≤ 100nS
2K Factor:≤ 2%
Output Level:≥ 53dBmV combined*
Adjust Range:20dB Per 32CHs
10dB Per CH
Audio Output Format:MONO
Audio Level Adjust Range:0 ~ 100 %
RF Test Point:-20 dB Relative to output
Control and Monitoring
Configuration Interface: Web-based
Remote: Upgrade via network
Connector: RJ45,100M/1000M Ethernet interface
Physical and Power
Management: NMS
Language: English
Power Supply: AC 90 ~ 264 V
Consumption:<240 W
Weight: 8.5 KG
Dimension: 484*435*89 (MM)
