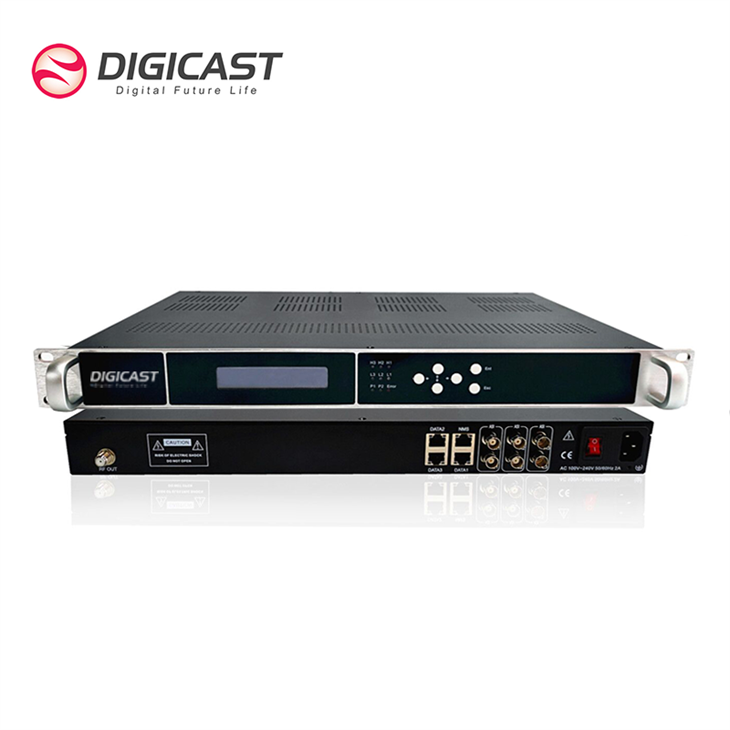

IP to ATSC CATV RF Modulator: All-in-One Digital Broadcasting Solution

The IP to ATSC CATV RF Modulator is a professional, user-centric digital broadcasting device specifically engineered to bridge IP-based media delivery and ATSC-standard RF distribution. Its core function is to seamlessly receive digital content transmitted via IP backbone networks, private LANs, or CDN (Content Delivery Network) platforms, then convert and modulate this programming into high-quality digital RF signals that comply with ATSC standards-enabling smooth distribution over coaxial cable (CATV) systems or terrestrial ATSC transmission networks. Designed for simplicity and efficiency, it eliminates the need for multiple cascaded devices, making it an ideal choice for both small-scale deployments and large-scale digital TV (DTV) broadcasting projects.

As a fully integrated all-in-one utility device, this RF modulator simplifies the entire signal processing workflow, from input reception to RF output, with no requirement for additional auxiliary equipment. It is equipped with 3 dedicated Gigabit Ethernet (GigE) data ports, each optimized to efficiently gather IP Transport Streams (TS) via UDP/RTP protocols-industry-standard transport methods for reliable, low-latency media transmission. Each GigE port supports concurrent input of up to 128 IP streams, including both Single Program Transport Streams (SPTS) and Multi Program Transport Streams (MPTS), ensuring robust compatibility with diverse IPTV content sources and large-volume program delivery needs.

To enhance versatility and backward compatibility with traditional broadcast infrastructure, the modulator also features 6 independent ASI (Asynchronous Serial Interface) input ports. These ports allow seamless integration with legacy ASI-based broadcast equipment, enabling mixed processing of IP and ASI signal sources. This hybrid input capability gives operators the flexibility to combine content from modern IP networks and traditional local sources, all within a single device-streamlining system architecture, reducing hardware costs, and simplifying content scheduling and management.

A key highlight of this device is its flexible, ATSC-optimized RF output capability, tailored to meet the varying scale requirements of different broadcasting scenarios. It supports modulation of processed IP and ASI streams into 8, 16, 24, or 32 independent non-adjacent RF carriers, all fully compliant with ATSC standards. The non-adjacent carrier design is a critical advantage, as it allows operators to freely assign frequency points for each carrier within the standard ATSC bandwidth, without being restricted to fixed adjacent frequencies. This flexibility ensures optimal use of available spectrum resources, avoids co-channel and adjacent-channel interference, and enables seamless adaptation to regional spectrum regulations and complex coaxial distribution environments.

Features:
