Overview

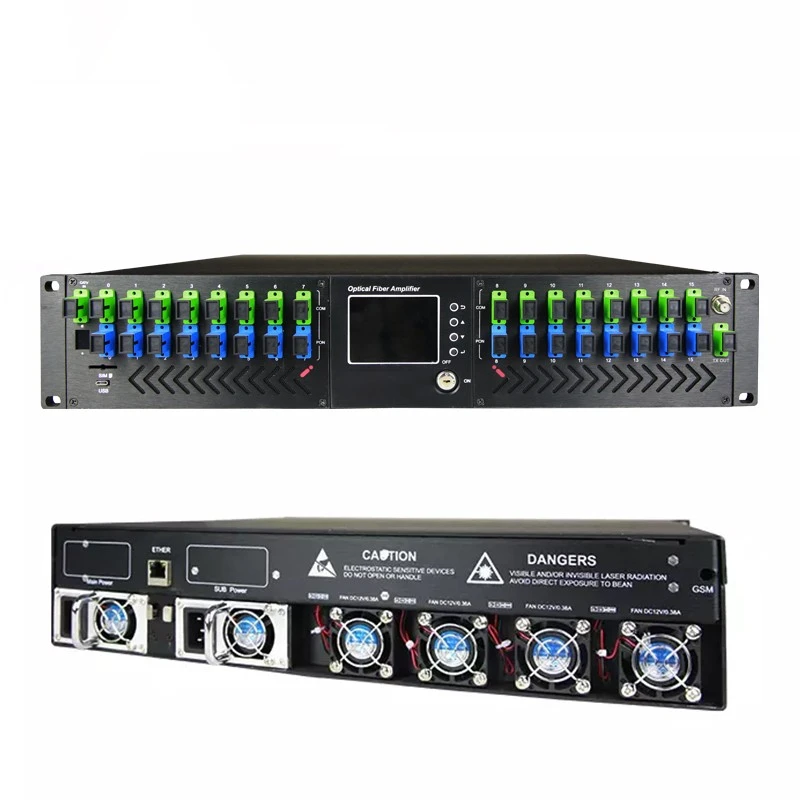

DIGICAST EDFA series is a low noise, high performance, FTTP high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently.
DIGICAST optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.
Features:
Built-in WDM multiplexer-- mix the PON outputs from the OLTs optional
High Stability and Reliability--The front panel key can set up and modify the device performance parameters to meet different network design requirements
Excellent protection circuit design -- The front panel indicator lights monitor and instruct the running status of device parameters in real time, easy to find problems in time
High Output Power and High Gain---The 2U product supports total output power up to 38dBm, and supports the output power adjustable function with an adjustable range of +0.5~-4dB
Friendly network management interface--support WEB network management and SNMP, WEB interface is rich in functions
Dual power supply-- Dual power supply with one-touch pull-out and hot backup design
Hot Tags: 16 port erbium doped fiber amplifier, China 16 port erbium doped fiber amplifier manufacturers, suppliers, factory, edfa optical amplifier edfa , Edfa Fiber Amplifier, 16 Port Erbium Doped Fiber Amplifier, edfa amplifier
Technical Parameter
|
Item |
Unit |
Technical parameter |
Remark |
|
|
CATV wavelength |
nm |
1535~1565 |
Center wavelength 1550nm |
|
|
PON OLT wavelength |
nm |
1310/1490 or 1270/1577 |
Customizable |
|
|
CATV Input optical power |
dBm |
-10dBm ~ +10dBm |
suggested value -5dBm~+10dBm |
|
|
Max output power |
dBm |
38 |
2U rack |
|
|
Optical power stability |
dB |
±0.1 |
||
|
Niose figure |
dB |
≤ 6 |
@+0dBm Input,λ=1550nm |
|
|
Reflection loss |
Input |
dB |
≥ 45 |
|
|
Output |
dB |
≥ 45 |
||
|
OSW |
Input ports |
2 |
||
|
Insertion loss |
dB |
≤1.0 |
||
|
Switching time |
s |
＜0.5 |
||
|
Optical connector type |
SC/APC;SC/PC;LC/APC;LC/PC |
Customizable |
||
|
C/N |
dB |
≥ 50 |
The test conditions are performed by GT/T 184-2002. |
|
|
C/CTB |
dB |
≥ 63 |
||
|
C/CSO |
dB |
≥ 63 |
||
|
Supply voltage |
V |
AC110V/220V(90V ~ 265V) or DC48V(38- 58V) |
||
|
Equipment power consumption |
W |
＜ 70 |
||
|
Working temperature |
℃ |
-5 - +42 |
||
|
Max relative humidity |
% |
Maximum 95% without condensing |
||
|
Storage temperature |
℃ |
-40 ~ +80 |
||
|
Max storage relative humidity |
% |
Maximum 95% without condensing |
||
|
Dimensions |
mm |
337(W)*482(L)*44(H) |
||
|
Packing size (1 set) |
mm |
487(W)*582(L)*110(H) |
||
