Overview

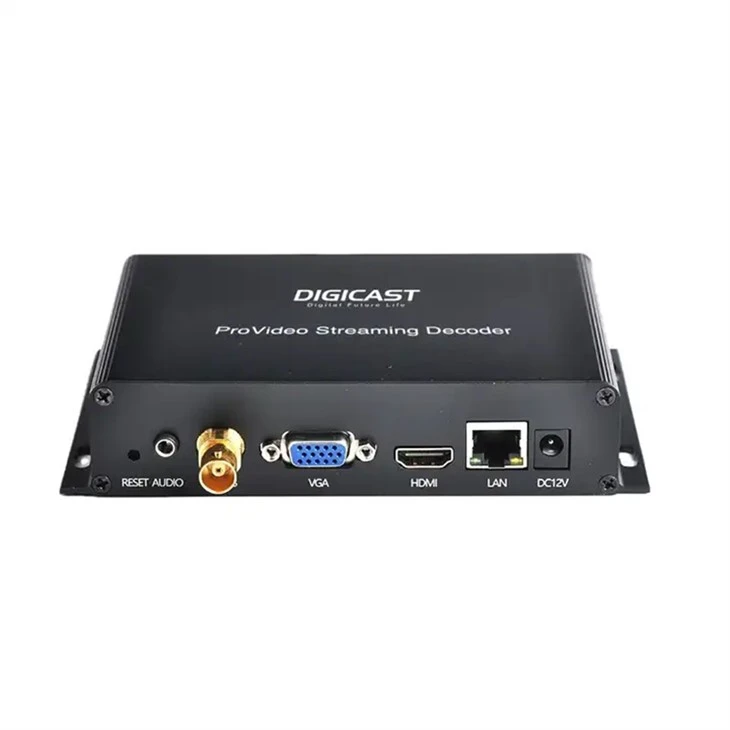

DMB-8900BE is a H.264/H.265 4K IP video decoder with HDMI,CVBS and VGA output, composite video, and analog audio outputs. The decoder can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, and output video at resolutions up to 4096x2160p.
DMB-8900BE can also directly decode video streams from many live platforms such as YouTube Live, Live stream.
Features:
Output high quality video--Video Decoder supports HDMI and CVBS video output with resolutions up 3840x2160p 60 FPS. VGA output is also supported.
Audio Compatibility--Audio coding formats with Dolby AC3, AAC, MP3, MP2
Decodes all common streaming protocols --SRT, RTMP, RTMPS, RTSP, UDP, and HLS, etc
Low Latency--Adopting intelligent delay control technology, it can achieve a decoding delay of less than 200ms with DIGICAST Encoder
Simple Operation and Easy Setup--User-friendly web browser-based GUI control
Hot Tags: hevc video decoder, China hevc video decoder manufacturers, suppliers, factory, video decoder for machine learning video, video decoder for river video, video decoder for edge computing video, video decoder for non real time video, video decoder for neighbors video, video decoder for dance video
Specifications
Network protocol
Protocol: Support RTSP/HTTP TS/HTTP FLV/RTMP/UDP/HLS
Video decoding capacity
Decoding format : H.265 Baseline/Main/High Profile Level4.2
Frame Rate: 1-60fps
Bit rate(kbit): 32kbps-32Mbps
Resolution: Up to 4K@30
Channel number: Up to 4 Channels
Audio decoding capacity
Decoding format: G711A/G711U/AAC+/AAC++/MP2/MP3
Audio mode: Mono/Left, Right/Stereo
Sample rate(Hz): 8KHz/11.25KHz /22.5KHz /44.1KHz /48KHz
Channel number: 1 Channel
Video Output
HDMI: 4K@30fps,1080P@60/50fps,1080I@60/50fps,1080P@30/25fps,720P@60/50fps,576P@50fps,480P@60fps
VGA: The same as HDMI
CVBS: 720x576@25fps
Color: Brightness, Contrast, Hue, Saturation can be adjustable
Audio Output
HDMI audio embedded: 48KHz stereo output
3.5mm: Stereo output(Left&Right)
Audio control: Enable/Disable
Physical and Power
Network: 1000M
Management: Web management
Power: 12V/DC, 2A
Power Consumption: <5W
Working temperature: -20°C +60°C
Working humidity: <90%, non-condensing
Dimension: 115mmx150mmx28mm
Weight: 0.5kg
