Overview
DMB-8900A-EC 4K is a compact video encoder which supports up to 2160p30 H.265 encode in streaming to live event platform. With support for both H.265 and H.264 encoding,you can chose the coder you prefer, it also embedded audio and analog audio inputs, and a loop output for local monitoring. It is the perfect tool for live stream events, remote productions.
Features:

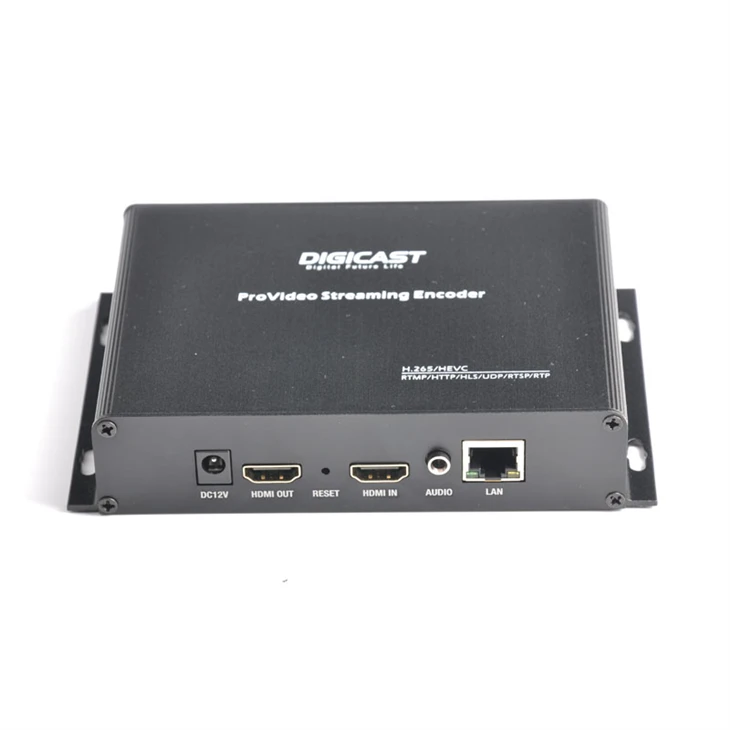

Multiple Connectivity Ports--one HDMI input, one HDMI video loop-out port, one RJ45 networking port, one 3.5mm Audio port, one DC power jack (12V/1A)
Powerful Video Encoding--H.265 HEVC, H.264 AVC, MPEG-4
Advanced Setting--Provides CBR (Constant Bitrate)&VBR (Variable Bitrate) encoding modes for broadcasting
Switchable of Audio Output Mode--Left, right and Stereo
Multiple Protocols --HLS, RTSP, HTTP, UDP, SRT, RTP and RTMP(S) protocol ,ONVIF Network Video Protocol
Simple Operation and Easy Setup--User-friendly web browser-based GUI control
Hot Tags: SRT Video Encoder, China SRT Video Encoder manufacturers, suppliers, factory, 4k encoder, 4k Streaming Encoder
Specifications
Video Encoding
Video compression: H.265/AVC High Profile Level 4.0
Video input: one channel HDMI
Analog video input mode: PAL, NTSC
Resolution:
Main stream:
3840x2160,1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576,640x480,640x360,auto
Sub-stream:
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,640x300,352X288,320X240, 320X180 auto
Third-stream:
720x576,720x540,720x480,720x404,704x576,640x480,640x300,352X288,320X240,320X180 auto
Forth-stream:
720x576,720x540,720x480,720x404,704x576,640x480,640x300,352X288,320X240,320X180 auto
Bit-rate: 16kbps~12Mbps, CBR/VBR
Video pre-processing: Noise reduction, Sharpen, Filtering
Audio Encoding
Audio compression: Dolby AC3,AAC,AAC+,AAC++,MP3,MP2
Audio input: HDMI embedded
Sampling accuracy: 24-bit
Bit Rate: 48kbps~320kbps
Sample-rate: 44.1KHz, 48KHz
IP Streaming output
Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
For each HDMI to IP output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled) with 4 different resolutions (up to 4Kp@30fps) and 4 different bitrates to meet different size screen and different bandwidth condition.
Connector: RJ45, 1000M
General Options
System
Configuration Interface: Web-based management
Upgraded: via network
Connector: RJ45, 1000M Ethernet interface
Physical and Power
Voltage: 12V
Consumption: less than 5W
Operating temperature: 0~45℃(operation), -20~65℃(storage)
Dimensions: 112mm(W)*100mm(D)*28mm(H)
Net Weight: 0.3 KG
