Features:
High-performance media engine and new generation of architecture design--- possess the capacity of Ten thousand people's concurrence easily.
The compatibility with various kinds of end-players--- PC, cellphone, TVs, pad(IOS/Android/Windows))for smoothly video play.
Customizable--- Able to offer/develop the API interface for integrate into customers' existing system as per needs.
Stability & Easy & Safe--- Designed for broadcast level operation with Linux OS for running 24/7/365.
With the VOD system integration--- realize Live/VOD service on single device.

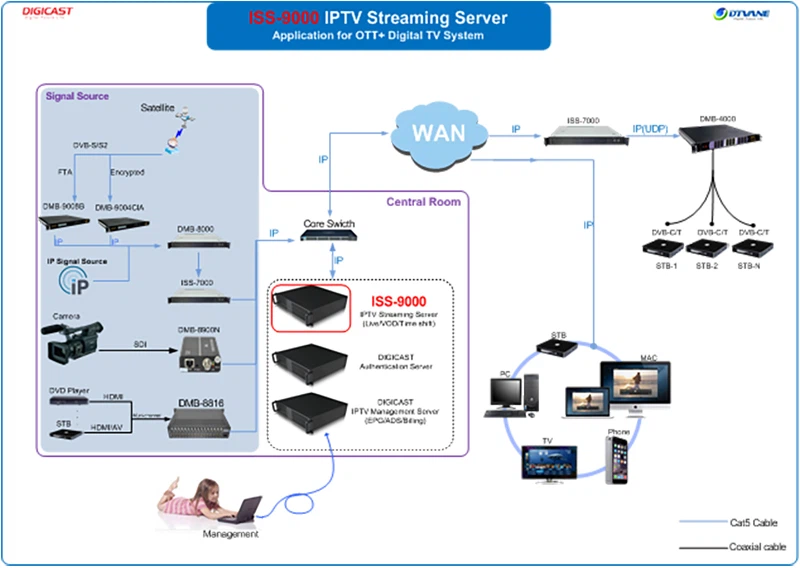

Applications
Hot Tags: iptv distribution system, China iptv distribution system manufacturers, suppliers, factory, iptv solution, Broadcast IRD Receivers, 4k encoder, HDMI To DVB T Converter, Live Encoder, video encoder
Specifications
| Standard | ISO/IEC 14496-10 (H.264) |
| ISO/IEC 14496-3:1999 and AMD1 2000 (AAC LC) | |
| ISO13818(MPEG-2) | |
| Play mode | LIVE, VOD |
| Package Mode | FLV, TS, MP4, M3u8 |
| Video Protocol | HTTP, MMS, UDP, RTSP, RTMP, HLS, GRMP etc. |
| Input | IP streams: push streaming, pull streaming |
| VOD: files | |
| According to your requirements | |
| Video format | H.264, H.265 |
| Multimedia stream technology | HTTP dynamic adaptive DASH |
| Audio format | AAC, AC3, MP3 |
| Broadcasting mode | HTTP (FLV, HTTP(ts), RTMP, HLS, DASH, GRMP |
| Recording format | AVI, TS, MP4, MPEG-1,MPEG-2,MPEG-4,WMV etc.; |
| Security | |
| Anti-stealing-link | data layer authenticated encryption ,token authentication technology, many network authentication, Static authentication, secret key, third-party memcached authentication server |
| Network security | use the black and whitelist firewall settings |
| Player terminal | TVs(set top box),Pad, cellphone, PC and so on |
| Terminal system | Android, iOS(HLS section) windows and others smart Terminal |
| Terminal adapter | Adobe Flash Player; iPhone, iPod, iPad(IOS3.0 or later) |
| QuickTime Player; Safari; Android (2.0 or later) device | |
| VLC Player; Other HLS-compatible players | |
| Statistical monitoring | statistical data for network data broadband, users, consumption and others, monitor the consumption of CPU, internal storage, hard-disk space |
| Capacity | Strong load capacity, each unit ISS-9000 support up to 10K users concurrence |
| Stability | With broadcast level operation designed for running 7x24/365 |
| Operating System | Industrial embedded Linux operating system |

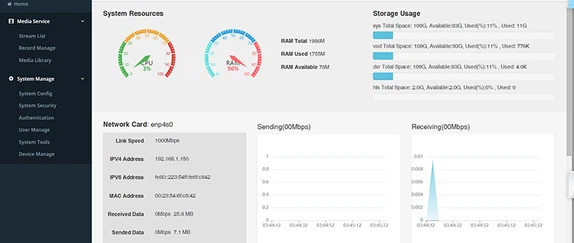

| Control method | Web-based remote management, realizing the configuration through web remote operation in any device at anytime, anywhere |
| Resolution | 160*120, 176*144, 320*240, 352*288, 352*240, 640*480, 800*600, 720*480, |
| 720*576, 1024*576, 1024*768, 1152*864, 1280*720, 1280*800, 1280*960 | |
| 1280*1024, 1300*768, 1336*768, 1360*768, 1366*768, 1440*900, 1600*900 | |
| 1600*1024, 1600*1200, 1680*1050, 1920*1080, 1920*1440, 2048*1080 | |
| 2560*1440, 3840*2160, 4096*2160 | |
| Frame rate:0fps, 1fps, 5fps, 10fps, 15fps, 29.97fps, 30fps, 50fps, 60fps | |
| Video Signal Recording Frame Rate | |
| 720P: 1-60 frame | |
| 1080P:1-30 frame | |
| 4K:1-30 frame | |
| Weight | 9.5kg |
| Temperature | 0~45℃(working), -20~80℃(storage) |
| Voltage | AC110V±10%, 50/60Hz |
| AC 220V±10%,50/60Hz | |
| Power supply | 350W |
