Product Introduction

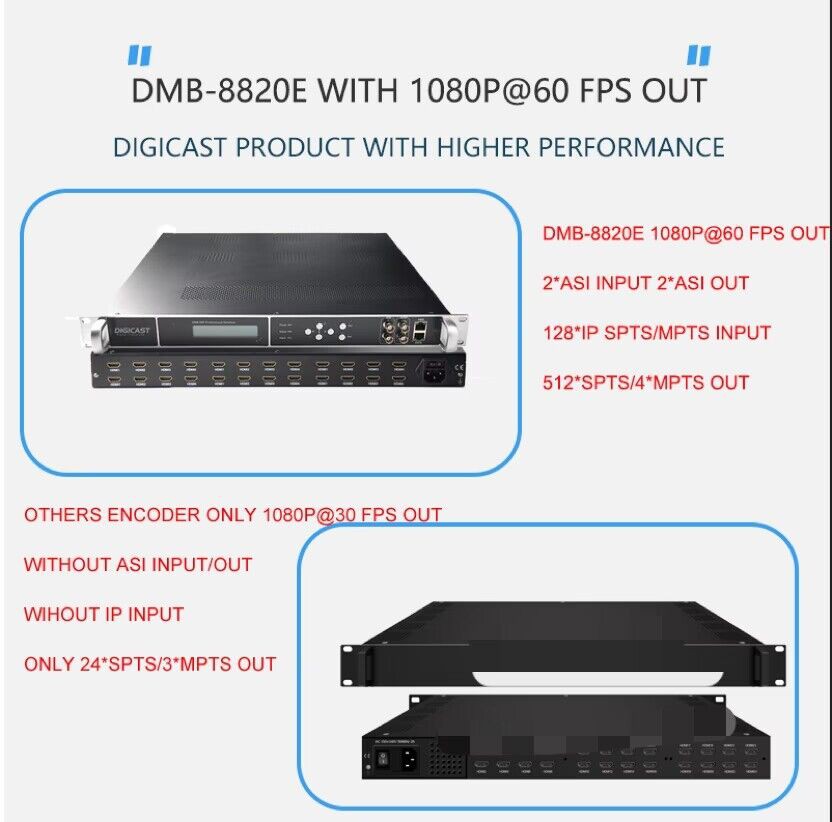

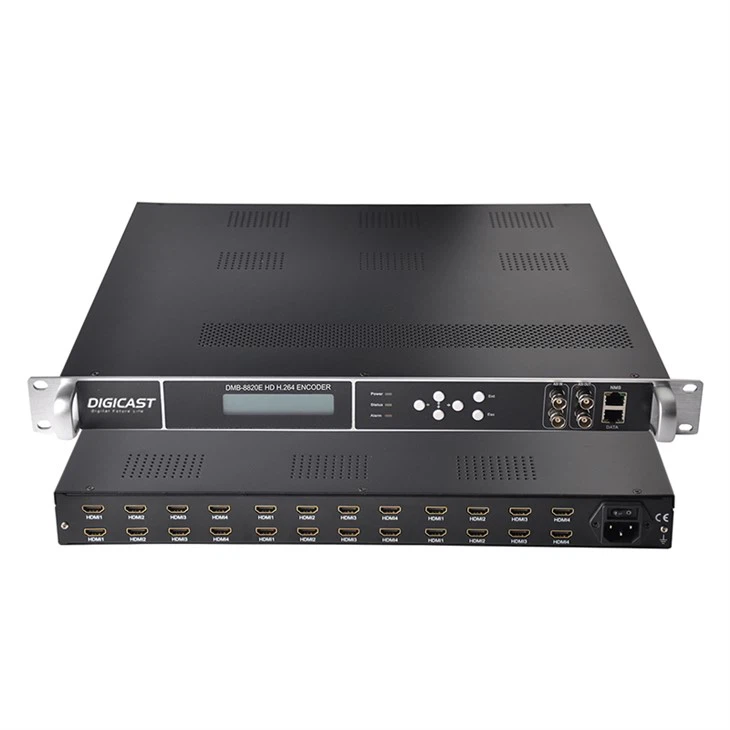

DIGICAST 24 HDMI DVB Streaming H.264 ASI Encoder
Model #: DMB-8820E
Highlight
1: Multi-Channel Input Option: 4/8/12/16/20/24 HDMI Input
or mixed input HDMI+Tuners(DVB-SS2/TT2/D/ISDB-T/DTMB)
2: Resolution input and output max to 1080P@60 FPS
3: MPEG-1 Layer 2, LC-AAC, HE-AAC, AC3 Pass through audio encoding
4: MPEG-4 AVC/H.264 Video encoding, HEVC/H.265 Option
5: 1 Gigabit Output for UDP and RTP/RTSP protocols
Overview
DIGICAST DMB-8820E Encoder is applied for professional digital TV broadcasting: can be used both as independent device for IP TV and as a part of head-end station. It support 24-HD audio & video channels and can multiplex them with independent 2 ASI stream (TS) for further transmitting, in addition can be prepared 4*MPTS & 512*SPTS UDP/RTP IP Output MPTS totally for several IP output or ASI output transport streams.
This high-definition audio and video encoder supports input video resolutions up to 1080p 60fps through built-in 24 HDMI inputs,has 4*MPTS & 512*SPTS UDP/RTP IP Output. Each encoding channel supports H.264/H.265(HEVC) Baseline/Main/High Profile.
Using our 24 channel HD Encoder you obtain both user-friendly web-management (control by IP) and useful up-to-date device which key features and parameters are listed below.
Features:
Advanced video compression-- H.264/AVC, (H.265 /HEVC compression option)
Input interface can be option-- Version 1: 4/8/12/16/20/24 Channel HDMI
Version 2: HDMI+Tuner Mixed Input
Gigabit Output-- 128*IP MPST/SPTS input, output 8*MPTS & 512*SPTS UDP/RTP IP
Powerful resolution –Resolution max to 1080P@60 fps input and out
Applications
Various of DTV/IPTV/CATV Broadcasting Systems
Distribute IP source to Streaming Server in IPTV System
Advertising, monitoring, training and educating
Enterprise, hotel, campus, hospital, restaurant, public place etc.
Hot Tags: encoder for youtube live streaming, China encoder for youtube live streaming manufacturers, suppliers, factory, content delivery receiver decoder, digital signal receiver decoder, sensor receiver decoder, rack mountable receiver decoder, channel bonding receiver decoder, seamless receiver decoder
Specifications
Video compression: H.264/AVC, H.265 /HEVC(Option)
Video inputs: Version 1: 4/8/12/16/20/24*HDMI (DMB-8820E)
Version 2: N*HDMI+N*Tuners (DMB-8820E Plus,Max 24 Channels)
The Input Resolution: 1920x1080@60P, 1920x1080@60i,
1920x1080@50P, 1920x1080@50i,
1280x720@60P, 1280x720@50P
720x576@50i, 720x480@60i
The Output Resolution(Max 1080P@60 FPS): 1920×1080@60P, 1920×1080@25P,
1280×720@30P, 1280×720@25P,
720×576@25P, 720×480@30P(Support 1080P@60 FPS out)
Encoding: MPEG-4 AVC/H.264, H.265 /HEVC(Option)
Bit-rate : 1Mbps~13Mbps
Rate Control : CBR, VBR
GOP Structure : IPPPP (P Frame adjustment, without B Frame )
Audio Encoding
Encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Resolution: 24-bit
Audio Gain: 0-255
Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps
Sampling rate: 48KHz
ASI Inputs
Connector BNC: female, 75Ω
Packet Length: 188 bytes
Number of Input Ports: Dual separate ASI ports
Signal Level: 200-800mVp-p
Maximum bit-rate per port: ≤100Mbps
ASI Outputs
DVB-ASI 2 Separate ASI (Select from modulation channels or MPTS channels)
MPEG-2 TS over DVB-ASI (EN 50083-9)
75Ω, BNC, 188 Bytes
IP Streaming Output
RJ45 Port 100/1000M GbE Port
Simultaneous output with 512*SPTS and 8*MPTS, UDP/RTP
Filter Null Packet
Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate)
MPEG-2 TS over UDP/RTP, unicast, and multicast streaming
Configurable packet size: (2-7)x188Bytes
Multiplexing Specifications
Maximum PID Remapping 180 input per channel
PID remapping by automatically or manually
Accurate PCR adjusting
PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
General Options
Control and Monitoring
Interface: 1*RJ-45, 100/1000M Base-T network interface
Local operation: keyboard on front panel, LCD display
Remote control: web-based management
Physical and Power
Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz
Consumption: 60W
Operating temperature: 0 ~ 45℃
Storage temperature: -20 ~ 80℃
Relative humidity: 10%~90%(non-condensing)
Dimensions: 482mm(W)×380(D)mm×45mm(H)(19inch,1RU)
FAQ
What's your company type?

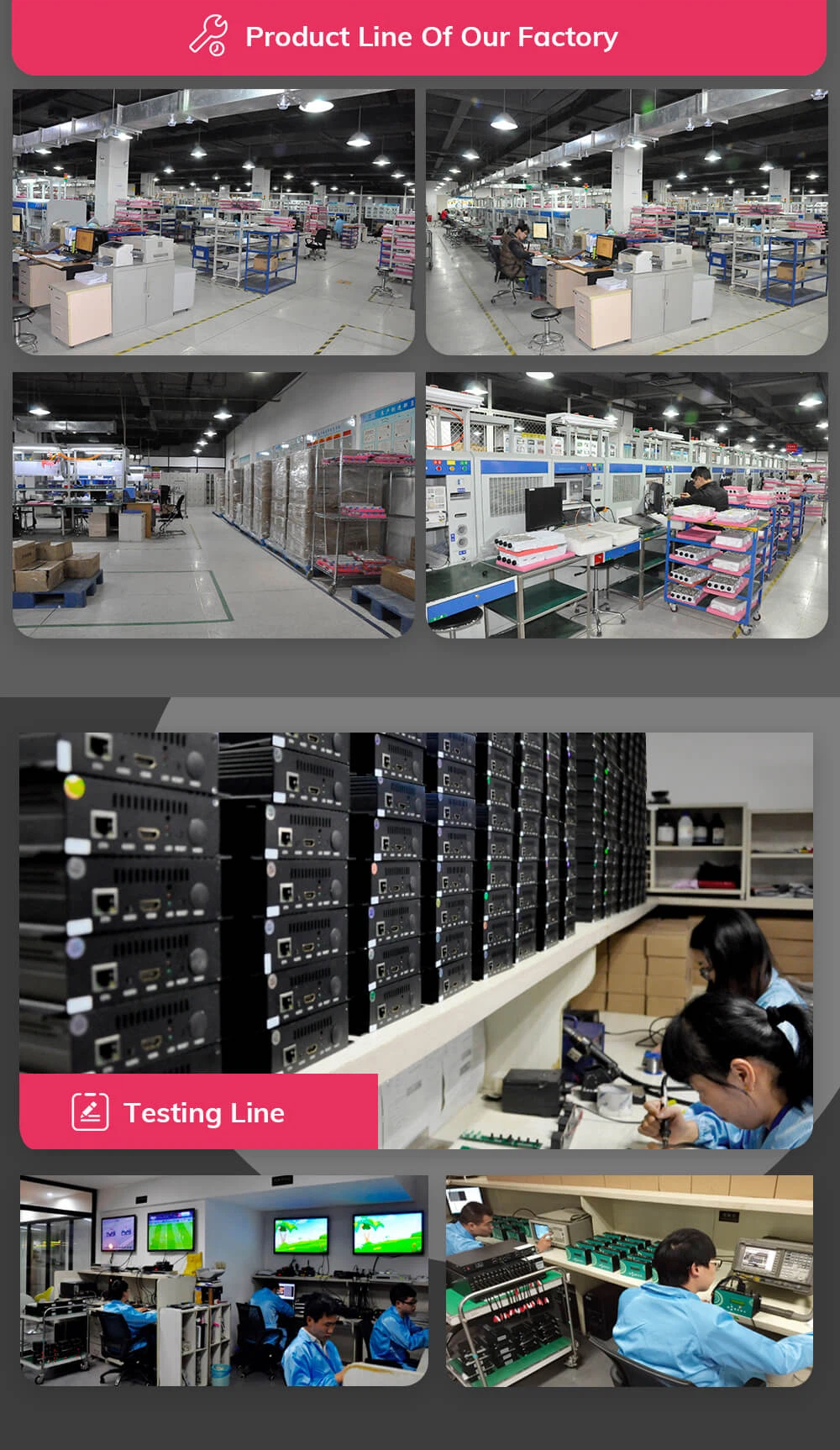

DIGICAST is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipment with more than 10 years history in China
